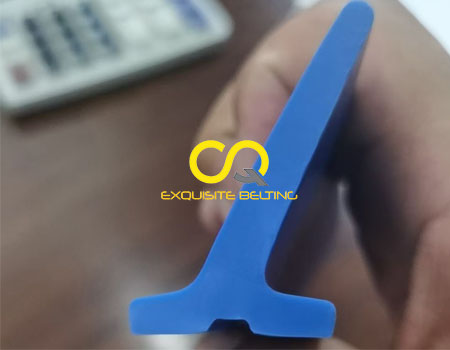

Inclined cleat 30° for conveyor belt, blue, green, white, with groove.
PVC Conveyor Belt Baffles, baffle factory.

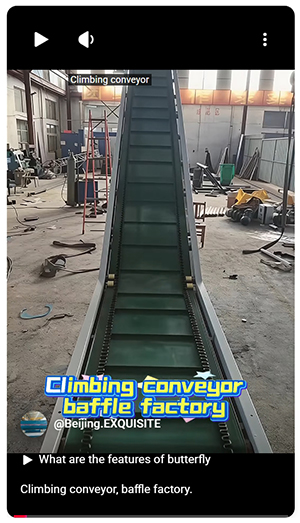

https://www.youtube.com/shorts/C9wicZGYv8Y
PVC conveyor belts are equipped with baffles to adapt to special working conditions such as steep incline angles, lifting conveyors, or preventing material spillage. Various shapes of rubber baffles are bonded to a flat PVC conveyor belt through a high-temperature vulcanization process.
I. Features of PVC Conveyor Belt Baffles.
Excellent anti-slip performance.
This is the core function of the baffle. By perpendicular to the conveyor belt, the baffle effectively prevents powdery, granular, and small lump materials from slipping or scattering during inclined conveying, greatly increasing the conveying angle (up to 90 degrees of verticallifting).
Improved conveying efficiency.
Allows steeper conveying angles, thereby shortening the conveying distance and saving equipment floor space and overall structural costs.
Flexible design and customization.
Various baffle shapes: Common types include T-type, TC-type (with sealing skin), C-type, V-type, and TCG-type (high baffle),
which can be selected according to material characteristics and conveying angle.
Adjustable Size: The height, thickness, and spacing (wave pitch) of the baffles can be customized to suit different material volumes
and conveying speeds.
Optional Base Belt: PVC conveyor belts are available in various thicknesses, colors (commonly green, white, and blue), ply counts,
and tensile strengths to meet diverse mechanical requirements.
Good Sealing (with Skirts):
When complete prevention of material spillage from both sides is required, continuous "skirts" can be vulcanized on both sides of the conveyor belt.
TC type baffles typically come with built-in rubber sealing skin, providing a better seal with the base belt,
making them particularly suitable for conveying fine powder materials.
Corrosion Resistance and Easy Cleaning:
PVC material itself has excellent water, oil, acid, alkali, and corrosion resistance, and is easy to clean,
meeting the hygiene requirements of the food and chemical industries.
Cost-Effectiveness:
Compared to rubber conveyor belts, PVC conveyor belts and their baffles have lower manufacturing costs,
making them an economical and efficient solution for large-angle conveying.
Good Flexibility:
PVC conveyor belts possess good flexibility, allowing them to adapt to smaller roller diameters and ensuring smooth operation
of the conveying system.
II. Applications of PVC Conveyor Belt Baffles.
PVC baffle conveyor belts are widely used in various industries requiring lifting, incline operation, or prevention of material spillage,
specifically including:
Grain and Food Processing
Application Scenarios: Conveying rice, wheat, corn, beans, flour, sugar, feed, pet food, snacks, etc.
Function: Achieving large-angle conveying in warehousing, lifting to processing equipment, and packaging stages, saving space.
Logistics and Express Sorting
Application Scenarios: Inclined conveyor lines for express parcels and e-commerce goods.
Function: Preventing parcels from slipping on inclined conveyor belts, ensuring smooth operation of the sorting system.
Chemicals and Building Materials
Application Scenarios: Conveying plastic granules, fertilizers, coal, mineral powder, cement, sand, gravel, etc.
Function: Preventing dust and material loss, achieving environmentally friendly and clean production.
Agricultural Products and Fruits/Vegetables.
Application Scenarios: Washing, sorting, and lifting lines for potatoes, fruits, vegetables, etc.
Function: Baffles effectively support round or easily rolling agricultural products.
Packaging and Manufacturing.
Application Scenarios: Inclined transfer of bottled and boxed products on production lines.
Function: Ensures stable transport of packaged goods, preventing them from tipping over or slipping.
Waste Disposal and Recycling.
Application Scenarios: Conveying and lifting municipal solid waste and recyclables (such as plastic bottles and paper).
Function: Adapts to complex and harsh environments, enabling centralized waste transfer.
In summary, PVC baffle conveyor belts are industrial components that, through a simple yet ingenious structural design,
greatly expand the application range of belt conveyors. When selecting baffles, the shape, height,
and spacing must be determined based on key parameters such as material characteristics
(particle size, moisture content, coefficient of friction), conveying angle, and conveying capacity to ensure optimal performance and lifespan.
