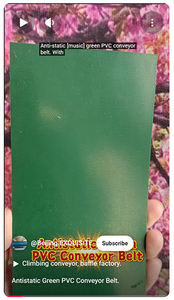

Antistatic Green PVC Conveyor Belt 2mm

Origin: Shanghai, China
Material: PVC
Standard: Yes
Samples: Yes & Free
Delivery: 7-15 days
Service: Life-long
Custom: Yes
Technical Index



Antistatic Green PVC(Polyvinyl Chloride) Conveyor Belt Thickness 2mm

Antiestático Cinta transportadora de PVC(Cloruro de Polivinilo) Verde Espesor 0mm

Antiestático Correias Transportadoras PVC Verde Espessura 2mm

Antistatique Bande Transporteuse PVC(Chlorure de Polyvinyle) Vert épaisseur 2mm

Антистатический Ленты конвейерные PVC(Поливинилхлорид) зеленый (ПВХ) толщина 2mm

Antistatisch Grün PVC Fördergurte Dicke 2mm


Electronic components must select Antistatic PVC Conveyor Belt, our PVC Conveyor Belt has the excellent antistatic performance,

protect electronic components very well from the antistatic. Antistatic PU Conveyor Belt too.


Los componentes electrónicos deben seleccionar la cinta transportadora de PVC antiestática,

nuestra cinta transportadora de PVC tiene un excelente rendimiento antiestático

y protege muy bien los componentes electrónicos del antiestático.




EXQUISITE INTERNATIONAL all the time insist on selecting durable polyester fabric as the core   and environmental new PVC as material as well as special unique formulations, thus makes the belt work life plus 5%-15%, it is outstandingly reducing the user's cost and increase the productivity rate 10%-20%, guarantee user's   projects.






GENERAL   CHARACTERISTICS

*anti-oil   anti-grease          *moisture proof   *low extension          *anti-corrosion   *Non-toxic, non-odorless
*high tensile strength        *anti   high and low temperature          *strong bonded, no shedding






BELT Structure


No. of Ply:2Minimum Pulley Diameters
Fabric Features

2 ply fabric, 2 ply pvc

Positive Operation:   50mm
Top SurfacePVC fabricReverse Operation:   70mm
-ColorDark green

-Thickness1.0 mmConveyor Frame Characteristics
-Hardness72 Shore ATrundle BedYes
SurfaceQ StrucMetal GrooveYes
Bottom Surface

Fabric

Plate Roller to SupportYes
Total Thickness2.0 mmInverted Wheel to SupportNo
Weight2.3 kg/㎡Special Mixed Inverted Wheel GrooveNo
Anti-staticYesReverse SlideYes
Maximum width3500mm










Belt Strength
Joint Methods
fracture   tension: 240 daN / cmhot Melt: FOF
recommended   maximum working tension: 12 daN / cmbuckle: K1 B2/Z or Inox
working tension under extension rate of 1%: 10 daN / cm







Operating   Temperature: -20℃ to 80℃Bottom Cover Friction Coefficient
temperature± 30% influenced by working time,
weight of material, different factors in the environment
Stainless steel, surface: 0.24
Stainless steel, semi-glossy:   0.24
Stainless steel, heat   lamination surface: 0.25
Scroll Plate: 0.23

Glossy plastic board: 0.28



                                                                                           Special Executions

The   test data under the environment: + 25 ℃, 70% relative humidity. And in other   circumstances,   the data are subject to change,

EXQUISITE INTL does not specify more.
