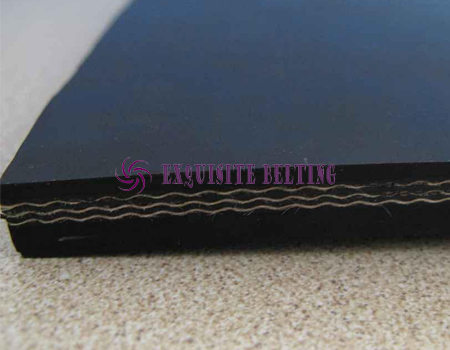

EP Rubber Polyester Conveyor Belt
Bande transporteuse en caoutchouc et polyester EP
Cinta Transportadora De Poliéster Caucho EP
Correia Transportadora De Poliéster Borracha EP
Конвейерная лента из полиэстера Резина EP
Features
Good elasticity, high strength, impact-resistance, flexibility and trough ability, and limited elongation.
High modulus low shrinkage canvas, supplemented by advanced technology, elongation rate can be controlled under 1%, so the conveyor belt won't slid.
The specifical moulding device can ensure the equal tension of each canvas layer, it greatly extends the use life.
The adhesion between the layers extremely high can reach to 10 n/mm, which is much higher than the 4.5 standard requirement, and due to top-class material and advanced technology, the abrasion ratio is less than 180 mm³.
Application
It is suitable for medium and small block, granular, powdery objects, and transportation of materials with high speed, medium and long distance with impact. Metallurgy, steel plants, building materials and construction, energy, chemicals, machinery and ports.
(*Youtube is invisible in China, please click the picture, watch it on Youtube*)
(* Youtube es invisible en China, por favor haga clic en la imagen, véala en Youtube *)
| Cover Properties of the Belts |
|
| Cover Grade | Tensile Strength | Elongation | Abrasion | Change Rate of Tensile Strength and Elongation after Aging | | ≥ | ≦ | ≦ | | Mpa | kgf/cm2 | % | mm3 | % | | Heavy(H) | 24 | 240 | 450 | 120 | -25~+25 | | Medium(M) | 18 | 180 | 400 | 100 | -25~+25 | | Light(L) | 15 | 150 | 350 | 200 | -30~+30 |
|
|
| Specification and Technical Data of Multi-ply Polyester Conveyor Belt |
|
| Fabric Type | Fabric Structure | Fabric | Ply Thickness (mm/P) | Strength Series(N/mm) | Cover Thickness (mm) | Width | Length | | Warp | Weft | Specs | 2 ply | 3ply | 4ply | 5ply | 6ply | Top | Bottom | mm | m | | Polyester | Polyester | polyeter | EP-80 | 0.8 | 160 | 240 | 320 | 400 | 480 | 2.0~8 | 0~4.5 | 400~500 | <=300 | | (EP) | (EP) | (EP) | EP-100 | 0.8 | 200 | 300 | 400 | 500 | 600 |
|
|
| EP-125 | 0.85 | 250 | 375 | 500 | 625 | 750 |
|
|
| EP-150 | 0.9 | 300 | 450 | 600 | 750 | 900 |
|
|
| EP-160 | 0.9 | 320 | 480 | 640 | 800 | 960 | 500~2500 |
|
|
| EP-200 | 1.05 | 400 | 600 | 800 | 1000 | 1200 |
|
|
| EP-250 | 1.25 | 500 | 750 | 1000 | 1250 | 1500 |
|
|
| EP-300 | 1.35 | 600 | 900 | 1200 | 1500 | 1800 |
|
|
| EP-350 | 1.5 | - | 1050 | 1400 | 1750 | 2100 | 600~2500 |
|
|
| EP-400 | 1.8 | - | - | 1600 | 2000 | 2400 | 600~2500 |
|
|
| EP-500 | 2 | - | - | 2000 | 2500 | 3000 |
|
|
